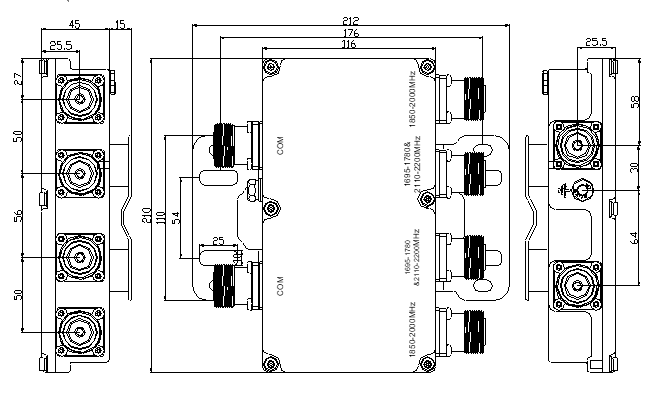

合路器1695-1780&2110-2200/1850-2000 MHz
| Part No. | 8055050 | |
| 電氣 | ||
| 頻率范圍 (MHz) | Port1→ Port3 Port4→ Port6 |
1695-1780&2110-2200 |
| Port2→ Port3 Port5→ Port6 |
1850-2000 | |
| 插入損耗(dB) | ≤0.4 | |
| 隔離 (dB) | ≥50 | |
| 回?fù)p/VSWR | ≤-20dB/1.22 | |
| 互調 (dBc) | ≤-150/155/160 (with 2×20W) | |
| 阻抗 (Ω) | 50 Ω | |
| 輸入功率 (W) | ≤200 W (avg.) | |
| DC/AISG | By-pass (max. 3000mA) | |
| 防雷保護 | 10KA; 10/350μs pulse | |
| 環境 | ||
| 工作溫度 | -20 °C to +65 °C | |
| 儲存溫度 | -40 °C to +85 °C | |
| 相對濕度 | 5% - 95% | |
| 應用 | 室內或室外 (IP67) | |
| 機械 | ||
| 接頭 | 7/16 Female | |
| 包裝 | 1pc /box | |
